MACHINE CONFIGURATIONS
Choose a granite bridge saw, marble bridge saw or quartz bridge saw by finished part, cutting method and required machining operations.
FLAGSHIP BRIDGE SAW
Combines multi-axis sawing, independent milling, camera positioning, profiling and suction-cup-assisted repositioning to reduce manual transfers.
CUTTING PLUS MILLING
A 360-degree cutting head and independent milling spindle handle irregular profiles, arcs, circles, polygons, sink cut-outs, faucet holes and drainboard grooves.
EDGE-QUALITY FOCUS
Coordinated pre-cut and main cutting support repeat sizing of brittle panels, with a liftable trimming blade, PLC control and oil-immersed guides.
ESSENTIAL CUTTING
For straight, cross, diagonal and 45-degree chamfer cutting in slab sizing and standard panel work, with oil-immersed guides, HOYUN control and a water-cooled motor.
* Final configuration is matched to your material, slab size, thickness, drawing and required output.
BRIDGE SAW MACHINE SERIES
Compare 5+2-axis, 4+1-axis and 3-axis double-blade processing, then match the machine to your material and drawing.
MULTI-ANGLE CUTTING & MILLING
For countertop fabrication and shaped work combining multi-angle sawing with milling. Final functions depend on tooling and configuration.
WATCH MACHINE VIDEO
CUTTING WITH INDEPENDENT MILLING
For slab sizing, 45-degree chamfering, drilling, grooves, sink openings and profile machining. Send the drawing to confirm the process scope.
WATCH MACHINE VIDEO
PRE-CUT + MAIN CUT
For repeat sizing of ceramic, sintered stone and other brittle slabs using coordinated pre-cut and main-cut processing.
WATCH MACHINE VIDEOVideos show representative processing; final scope is matched to your drawing and production requirements.
PROCESSING & APPLICATIONS
Match real processing examples and finished products to the work your factory needs to produce.
BRIDGE SAW DIGITAL WORKFLOW
Turn CAD geometry into an ordered cutting and machining sequence, then transfer parts to inspection or downstream finishing.
01
Load the CAD drawing or establish slab position with the camera workflow.
02
Set tool paths, cutting order, tools and part layout.
03
Run the saw cuts, then the required milling or shaping operations.
04
Move parts to inspection, edge finishing, assembly or the next production step.
Choose the model by the most complex process in your drawing.
TECHNICAL DATA
Compare the four models; voltage, electrical configuration and options are finalized for the destination market.
| Specification | 3 Axis | Double-Blade | 4+1 Axis | 5+2 Axis |
|---|---|---|---|---|
| Table size | 3200/3600 x 2000 mm | 3200/3600 x 2000 mm | 3200/3600 x 2000 mm | 3200/3600 x 2000 mm |
| Blade size | 300-420 mm | 300-420 mm | 300-420 mm | 300-420 mm |
| Cutting capacity | 0-50 mm | 0-50 mm | 0-50 mm | 0-90 mm |
| Main motor | 15 kW | 15 kW | 15/22 kW | 15/22 kW |
| Spindle speed | 3,000 rpm | 3,000 rpm | 3,000 rpm | 0-6,000 rpm |
| Milling motor | – | – | 5.5 kW | 5.5 kW |
| Milling speed | – | – | 18,000-24,000 rpm | 18,000-24,000 rpm |
| Rapid traverse | 15 m/min | 15 m/min | 20 m/min | 30 m/min |
| Total power | 22 kW | 26.5 kW | 27/34 kW | 27.5/34.5 kW |
| Machine size | 4800 x 3050 x 2400 mm | 4800 x 3050 x 2400 mm | 5200 x 3050 x 3800 mm | 5200 x 3850 x 3800 mm |
| Machine weight | 3000 kg | 3200 kg | 3300 kg | 3600 kg |
PRODUCT PARAMETERS
Compare each model by process; the image guide follows the same column order.
Model names stay on the left, while processing labels run across the top.
| Model | Cross / Vertical Cut | Chamfer | Polygon | Round | Slotting | Milling | Plane Carving | Profiling | Edge Shape |
|---|---|---|---|---|---|---|---|---|---|
| 3 Axis | ✓ | ✓ | — | — | — | — | — | — | — |
| 3 Axis Double-Blade | ✓ | ✓ | — | — | — | — | — | — | — |
| 4+1 Axis | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | — | — | — |
| 5+2 Axis | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Use this view to scan which control, cutting, vision, handling and inverter systems are marked for each model. Each matching image is placed below the same label outside the table.
| Model | CAD Import | Double-Blade Cutting | Camera | Suction Cup | Milling | Milling Inverter | Saw Blade Inverter |
|---|---|---|---|---|---|---|---|
| 3 Axis | — | — | — | — | — | — | — |

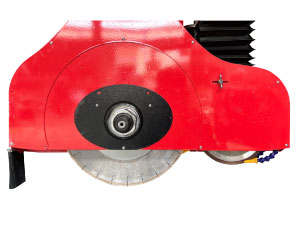

| 3 Axis Double-Blade | — | ✓ | — | — | — | — | — |
| 4+1 Axis | ✓ | — | — | — | ✓ | ✓ | — |
| 5+2 Axis | ✓ | — | ✓ | ✓ | ✓ | ✓ | ✓ |
Tip: On mobile, swipe the table horizontally to view all capability columns.
5+2 AXIS SYSTEM ANATOMY
See how the frame, cutting head, CNC, worktable and optional handling systems work as one platform.
The heavy bridge and frame carry the cutting assembly. TPI oil-immersed guides stay lubricated and protected from water and slurry for stable long-term travel.
The head coordinates blade rotation and tilt for straight cuts, mitres and shaped work. It accepts 300-420 mm blades and uses a 15 or 22 kW water-cooled main motor. The 5+2-axis spindle operates at 0-6,000 rpm.
CNC control manages programs, tool paths and coordinated axes. EtherCAT connects the control and drives, while international-brand bus-type absolute servos retain position reference for repeatable multi-axis operation.
The 3200/3600 x 2000 mm table supports full slabs and finished parts. The elevating platform eases loading, while an optional rubber surface reduces resonance.

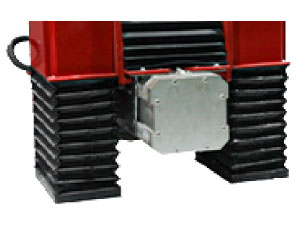

The camera establishes slab position. A heavy-duty suction cup moves workpieces up to 200 kg and helps avoid overcutting. The side-mounted milling cutter supports drilling, slotting, engraving and chamfering without frequent tool changes; availability depends on configuration.
Optional guards contain debris while maintaining visibility. For inner and outer holes, edging and shaped parts, the optional profiling table uses a high-strength honeycomb structure for secondary machining.
5+2-AXIS MOTION CONTROL
RTCP compensates for rotary-axis movement so the tool center follows the programmed path during multi-angle cutting.
01 / COMPENSATE
RTCP adjusts the commanded axis positions as the rotary axes move.
02 / COORDINATE
The cutting head changes angle while the tool center follows the programmed path.
03 / CONTROL
Supports controlled multi-angle cutting and shaped tool paths on the 5+2-axis bridge saw.
BRIDGE SAW SYSTEMS AND OPTIONS
Review the cutting, milling, vision, handling, control, worktable and safety systems available by model.
Delivers stable high-load sawing for granite, marble, quartz stone and sintered stone.
Handles slab sizing, straight cuts and mitre cutting across different stone materials.
Mounted beside the saw head for drilling, slotting, carving and internal cutouts without frequent tool changes.
Adjust blade and milling speeds independently to suit different materials and processes.
Captures the slab surface for visual positioning, layout alignment and faster origin setting.
Imports prepared drawings and nesting layouts for repeatable processing of customized parts.
Lifts and repositions cut pieces up to 200 kg, reducing manual handling and helping prevent overcutting.
The milling cutter prevents blade overcutting, while the suction cup repositions cut pieces—reducing slab waste and improving material utilization.
Centralizes sawing, milling, positioning and program execution through an operator-friendly interface.
Enables high-speed communication and synchronized multi-axis control for complex machining paths.
Retain axis position after power loss and support synchronized motion for faster restart.
Maintain continuous lubrication and protection in wet, abrasive stone-processing environments.
Simplifies slab loading and unloading while reducing manual handling around the worktable.
Dampens vibration to improve machine stability, machining accuracy and finished-part quality.
Features a high-strength honeycomb surface for inner and outer holes, edge shaping and profiling.
Contain chips and cutting debris while maintaining clear visibility of the working area.
WHY HOYUN
As a bridge saw manufacturer, HOYUN reviews your material, drawing, process and workshop conditions, then coordinates machine selection, verification, delivery, installation and after-sales support.
01 / REVIEW
Share your material, slab size, thickness, finished parts, output and required processes.
02 / CONFIGURE
Compare 3-axis, double-blade, 4+1-axis and 5+2-axis models, then confirm the key configuration.
03 / VALIDATE
Review sample cuts, machine functions and the final configuration before packing.
04 / SUPPORT
Confirm site requirements, then arrange installation, training and after-sales support.
CUSTOMER VISITS & MACHINE REVIEWS
These photos show customer visits and bridge saw reviews at HOYUN. Request relevant machine videos, sample cuts and project references for the configuration you are evaluating.
QUESTIONS AND ENGINEERING REQUEST
Send your material, slab size, thickness, drawing and required processes for an engineering recommendation.
Review the main decisions before requesting a proposal.
Choose by the most complex finished part. A 3-axis model covers regular slab sizing and chamfer cutting; double-blade models suit repeat brittle-slab sizing; 4+1-axis and 5+2-axis systems add holes, grooves, milling, profiles and shaped work.
The catalogue lists a 3200/3600 x 2000 mm working table and 300-420 mm blades. Listed cutting capacity is 0-50 mm for the 3-axis, double-blade and 4+1-axis models, and 0-90 mm for the 5+2-axis model. Final scope is confirmed against your material and drawing.
CAD import is available on the listed 4+1-axis and 5+2-axis configurations. Send a DXF, DWG, PDF or part image to confirm file support, programming workflow and camera requirements.
A bridge saw handles slab cutting, external shaping, chamfering and basic milling, while precision sink cut-outs, edge finishing and polishing may require a CNC machining center or bullnose polishing machine.
Share the material, maximum slab size and thickness, finished-product drawing, required processes, expected output, destination country, power supply and available workshop space.
HOYUN reviews sample cuts, machine functions and the final configuration before packing. Confirm the power supply, workshop space and site requirements so installation, training and after-sales support can be coordinated.
