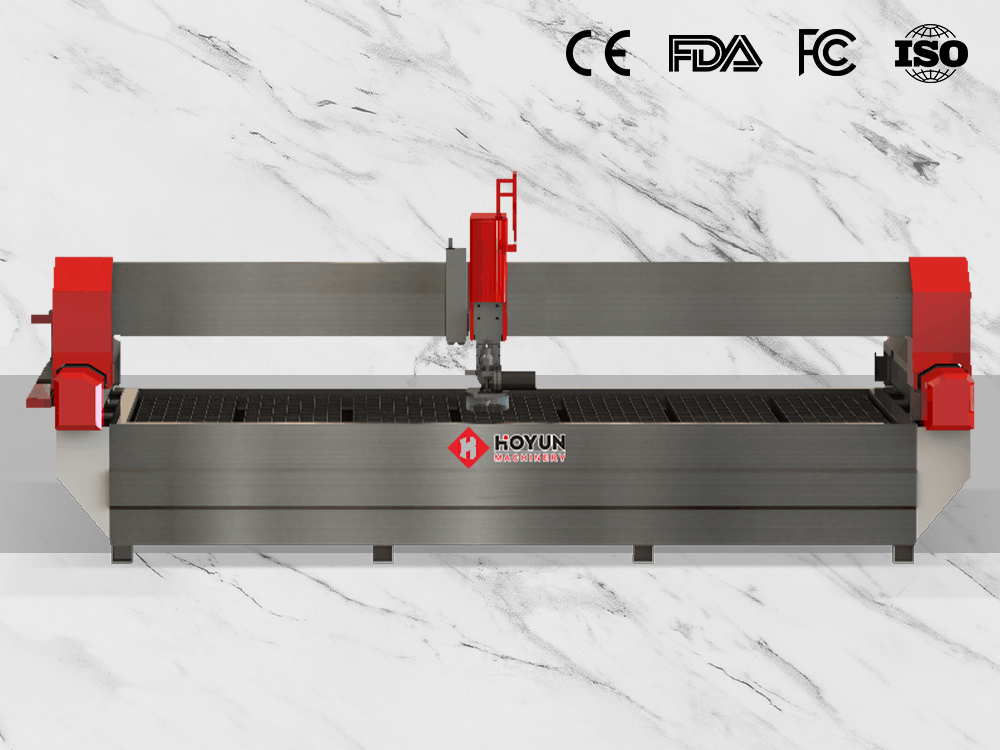

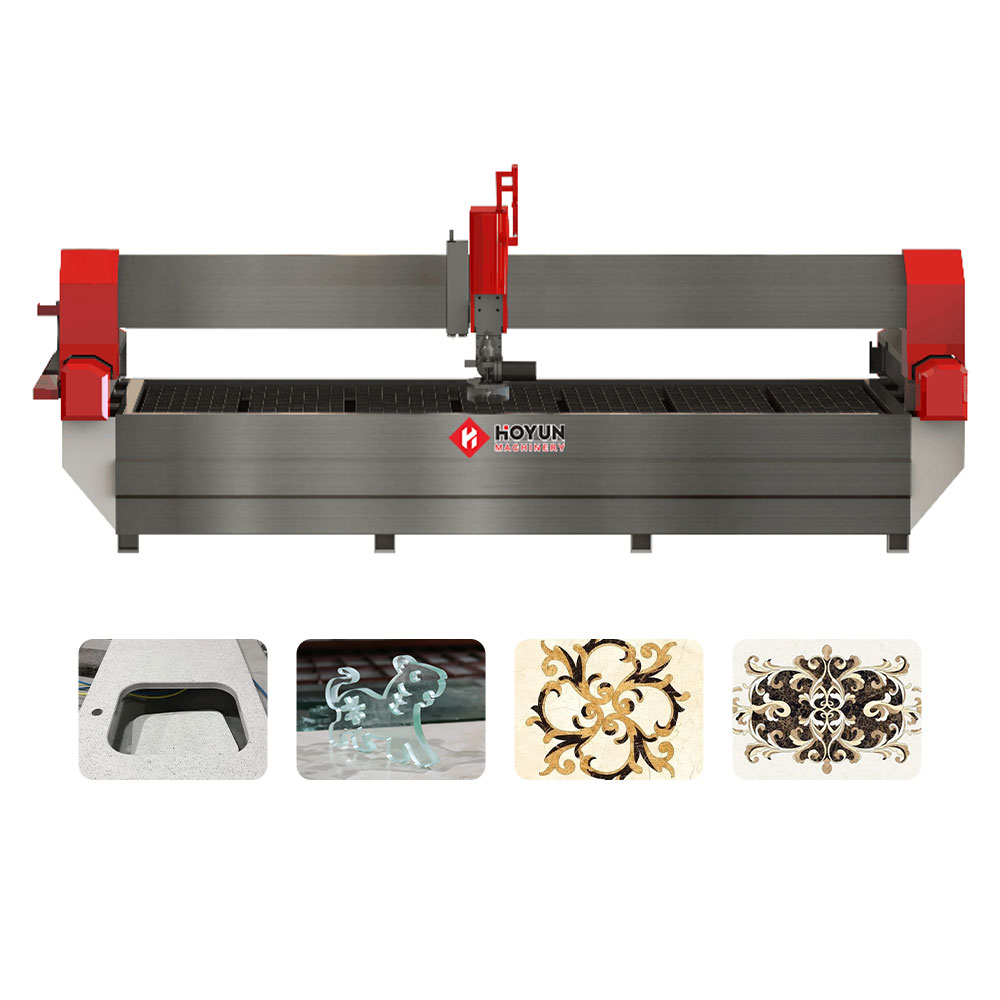

AB FIVE AXIS CUTTING SYSTEM

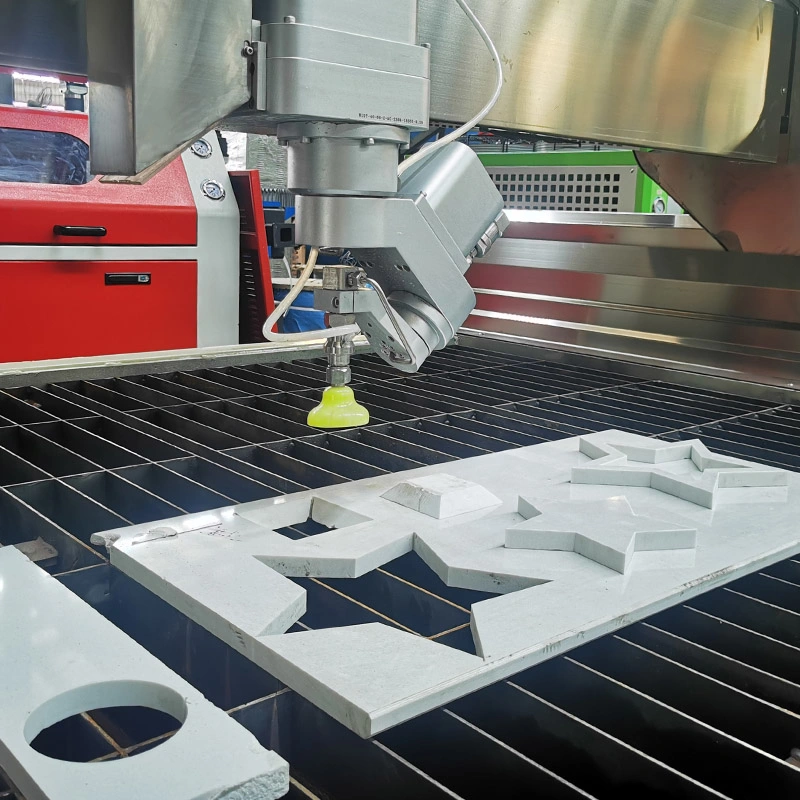

The Hoyun AB five axis cutting water knife easily solves the problem of uneven lower half of the cutting surface affecting assembly quality for the vast stone and ceramic industry. How does the AB five-axis design improve cutting quality for complex applications? Realize arc plate cutting, cylinder cutting, etc. The cutting head of AB five axis water jet cutter can perform arbitrary curve cutting from 0 to 10 degrees.
Our Advantage
Cast iron beam
More stable, reliable, high precision and long service life.
American ACC high-voltage components
Reliable quality, over 10,000 hours of service life.
European famous brand high pressure pipe.
More than 4,000 hours of service life.
Automatic variable pump
The pressure rises quickly, one-third faster than ordinary manual variable pumps, and is more efficient
The oil circuit design is simple
It is convenient for maintenance and avoids the situation where too many oil circuits are prone to oil leakage.
Huade reversing valve
Reversing forty million times without failure.
Oil-immersed TPI guide rail
More durable and more accurate.
Dry-type transforme
Automatically identify whether the neutral line is normal and protect the servo drive.
CNC host industrial computer
Strong anti-interference ability and high stability, supporting long-term operation.
WEIHONG WaterjetControl System
The system is easy to operate and can directly import CAD format files to easily complete various complex image cutting.

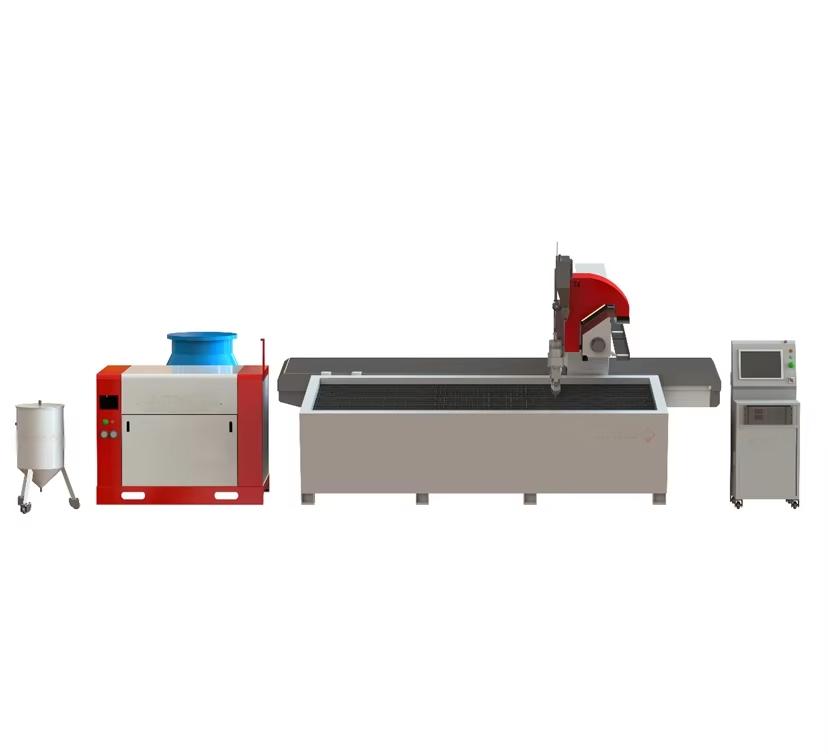

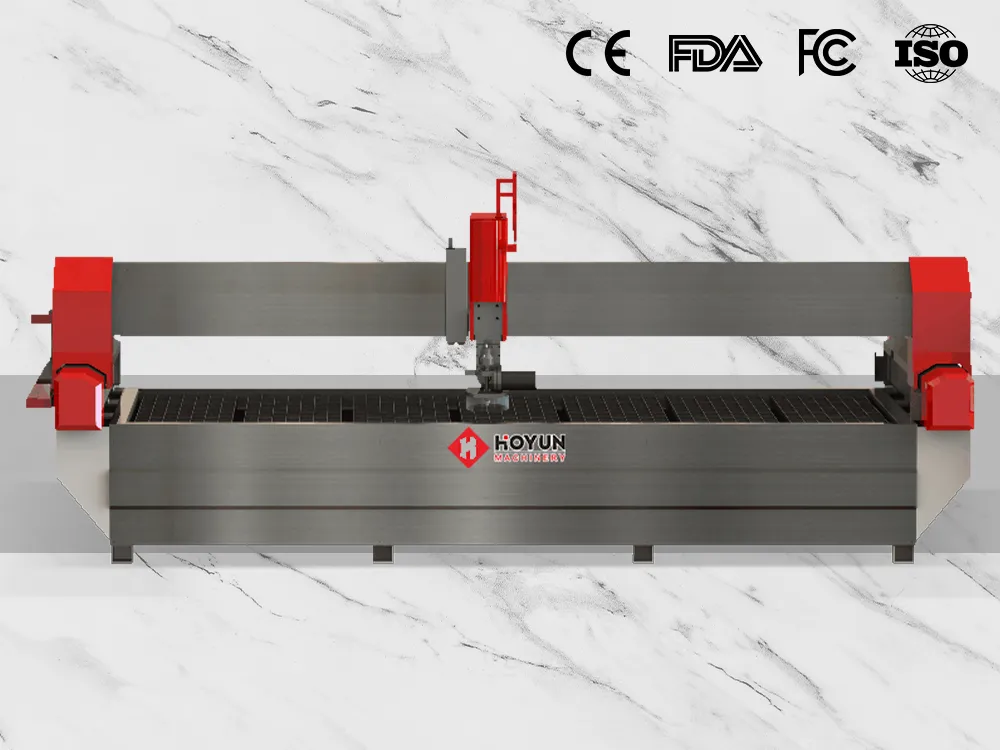

Parameters
Model |
HS2015 |
HS2515 |
HS3020 |
HS4020 |
|
|---|---|---|---|---|---|
Structure |
Bridge | Bridge | Bridge | Bridge | |
Cutting table size |
2200*1700mm | 2700*1700mm | 3200*2200mm | 4200*2200mm | |
Machine size |
3500*2350*2015mm | 4000*2350*2015mm | 4500*2800*2015mm | 5500*2800*2015mm | |
Stroke |
X axis |
2000mm | 2500mm | 3000mm | 4000mm |
Y axis |
1500mm | 1500mm | 2000mm | 2000mm | |
Z axis |
130mm | 130mm | 130mm | 130mm | |
Accuracy |
Cutting |
±0.1mm | |||
Repeatability |
±0.05mm | ||||
Cutting speed |
1.5-2m/min | ||||
Power supply |
220v/380v/415vAC,50/60HZ | ||||
Related Straight/Curved/Bevel/Miter Cut Out

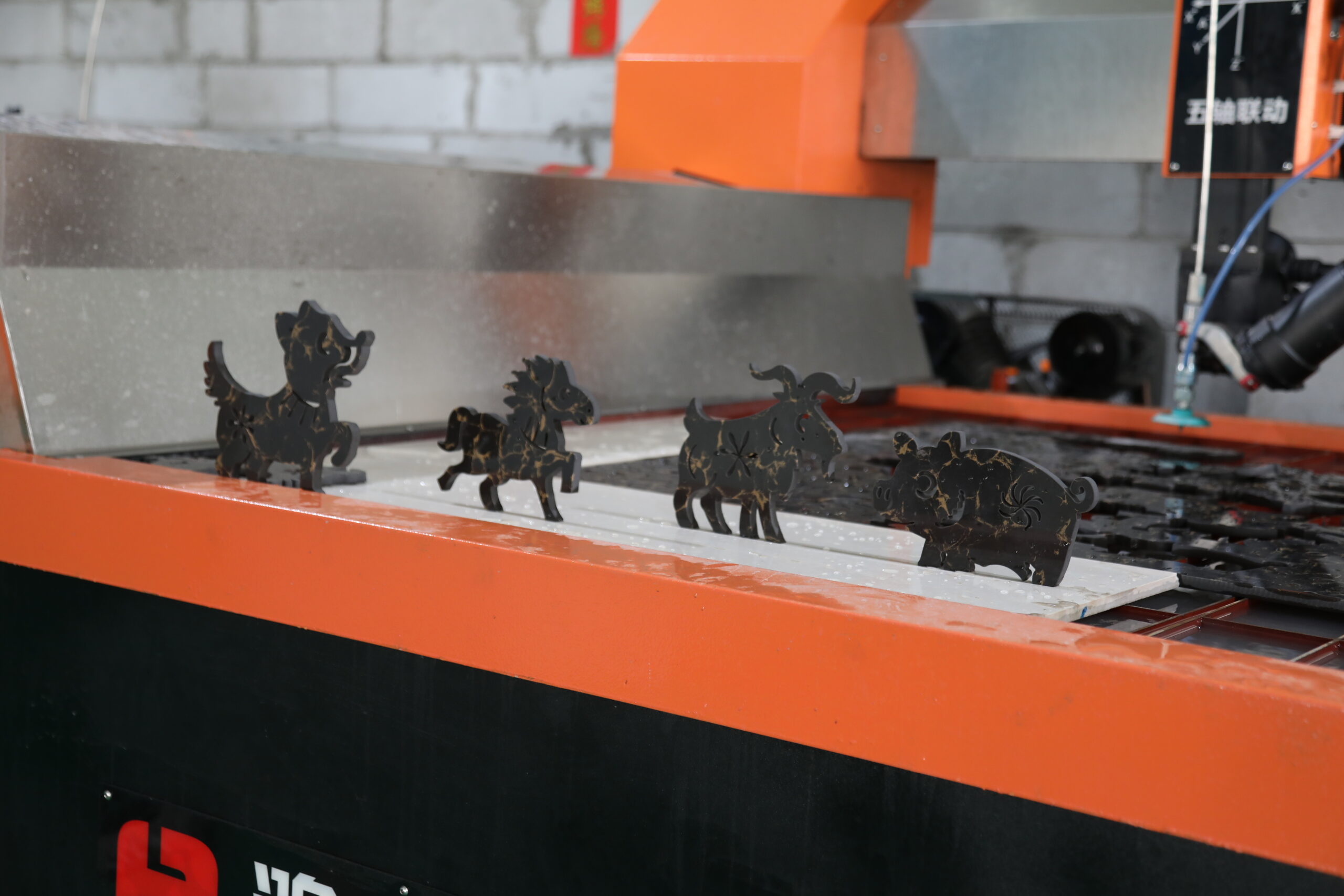

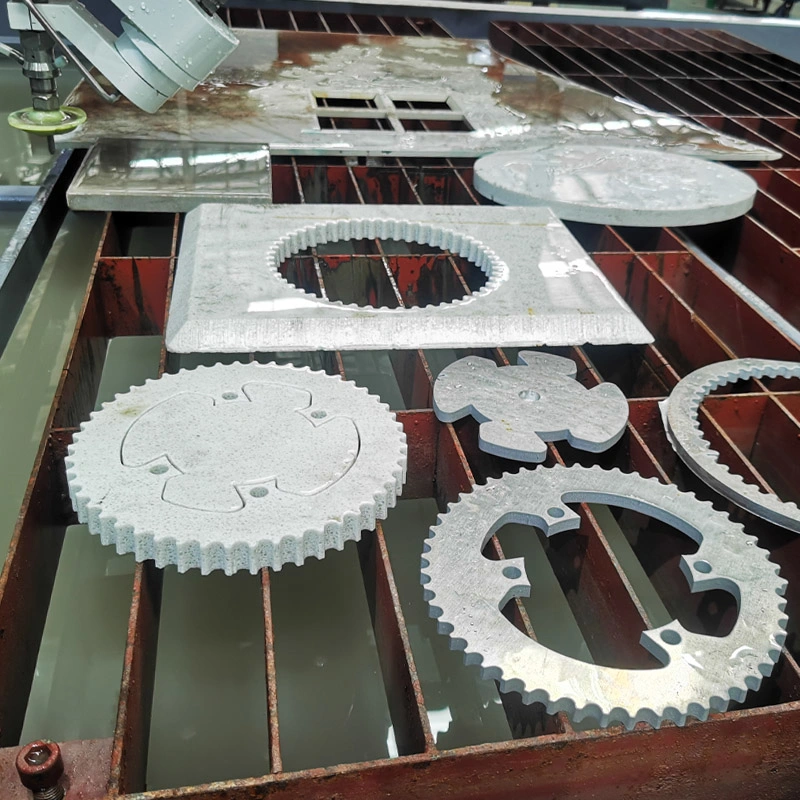

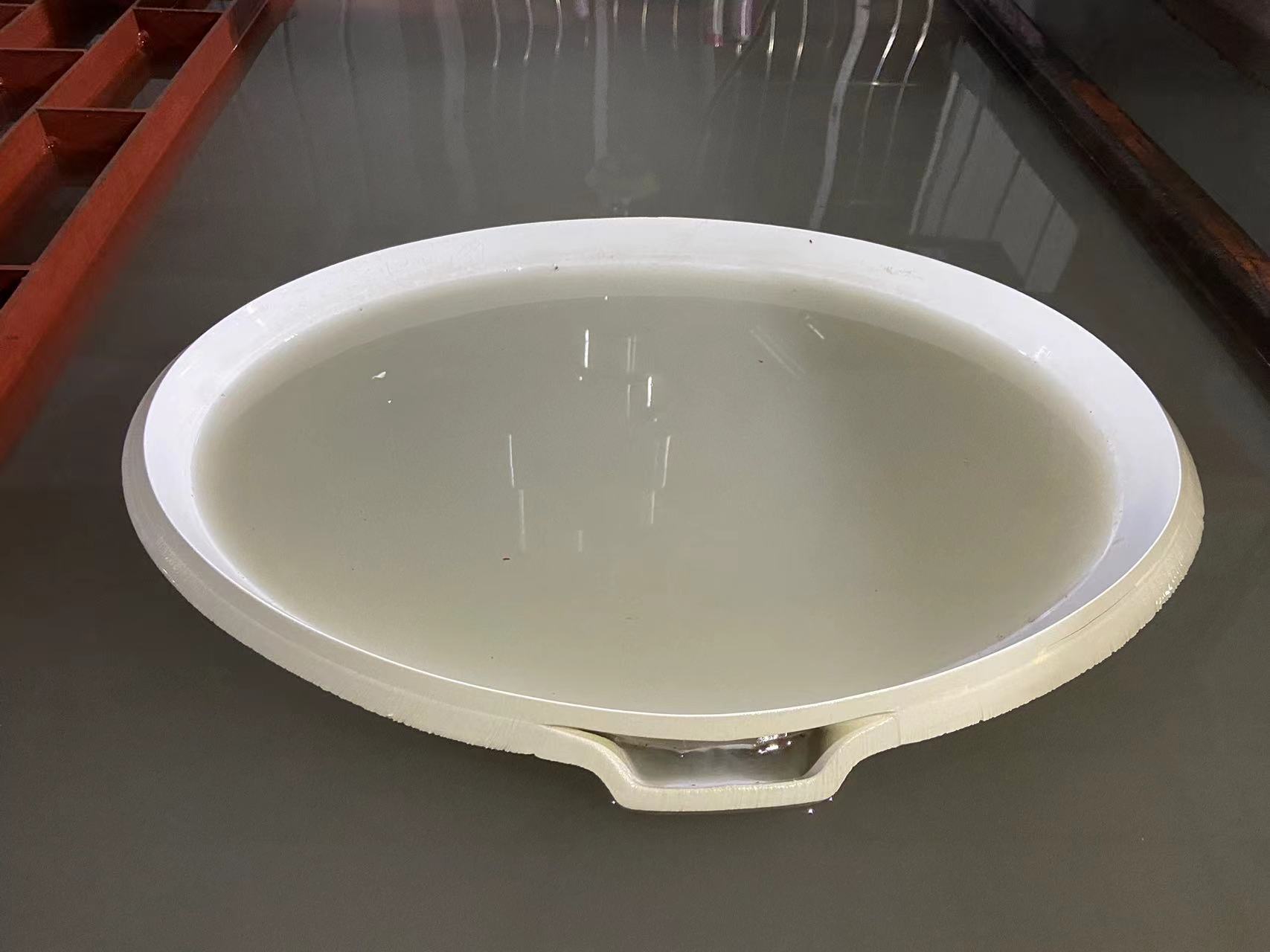

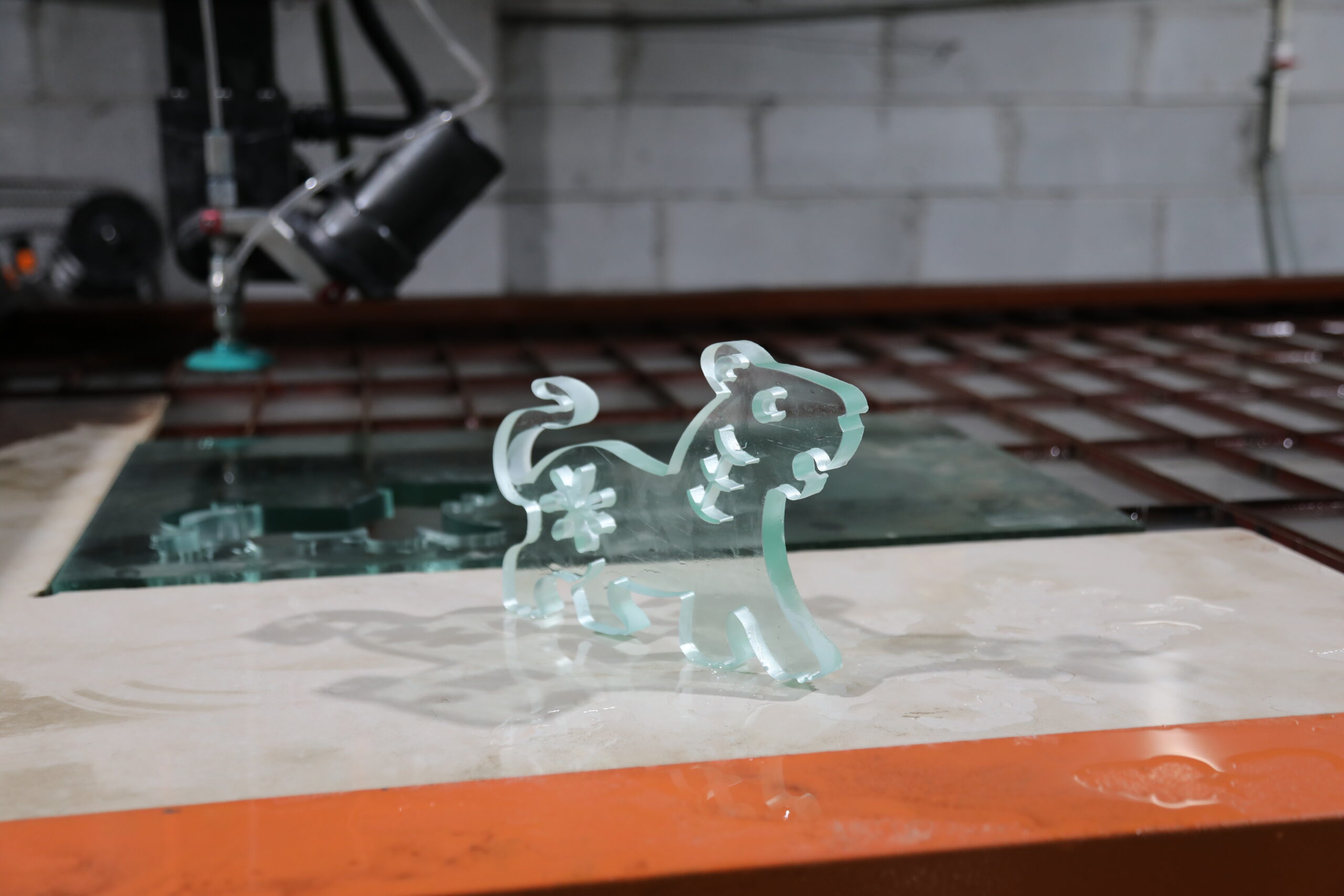

WaterJet Cutting Machine Applications
Our Partner
FAQ

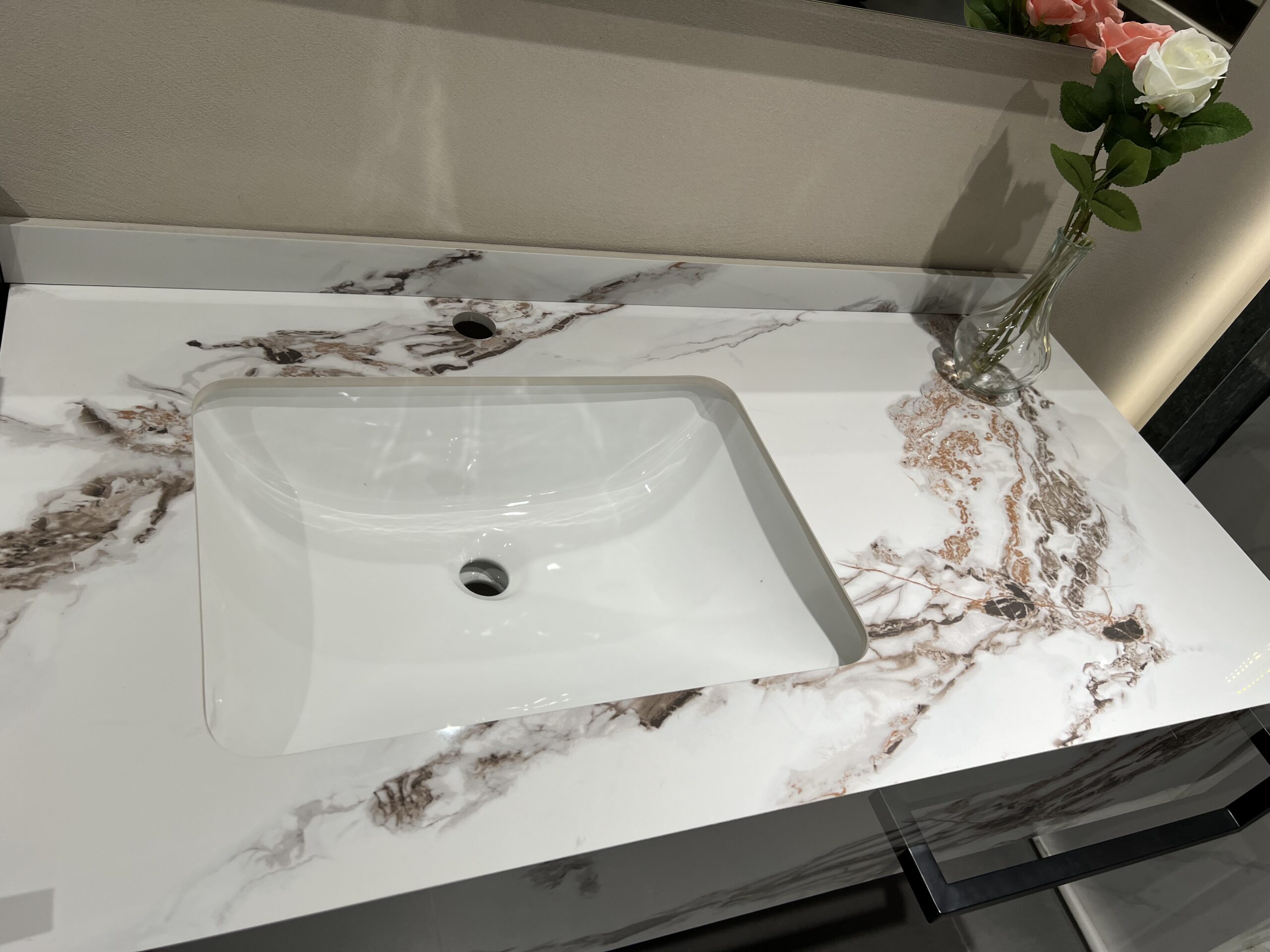

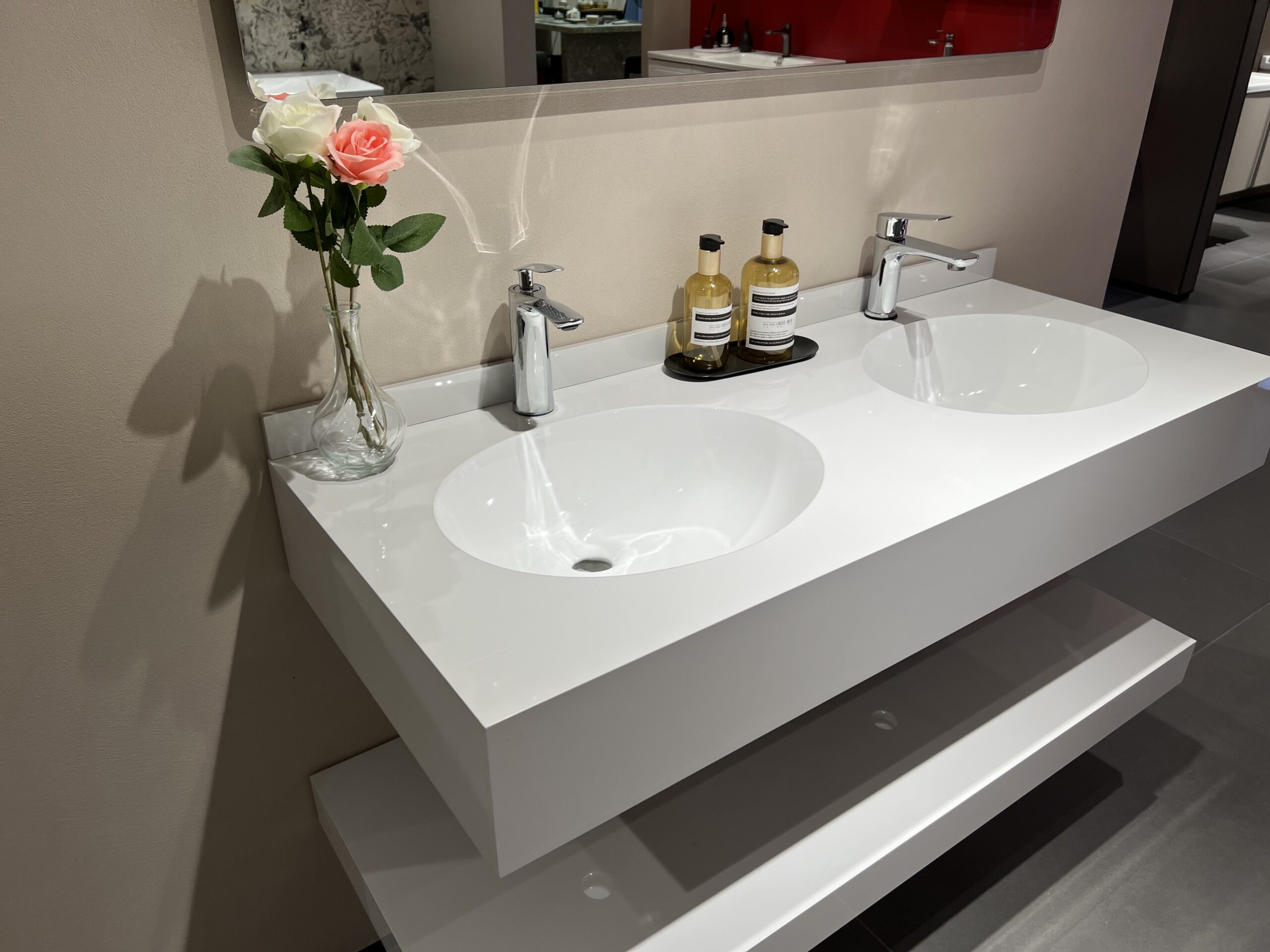

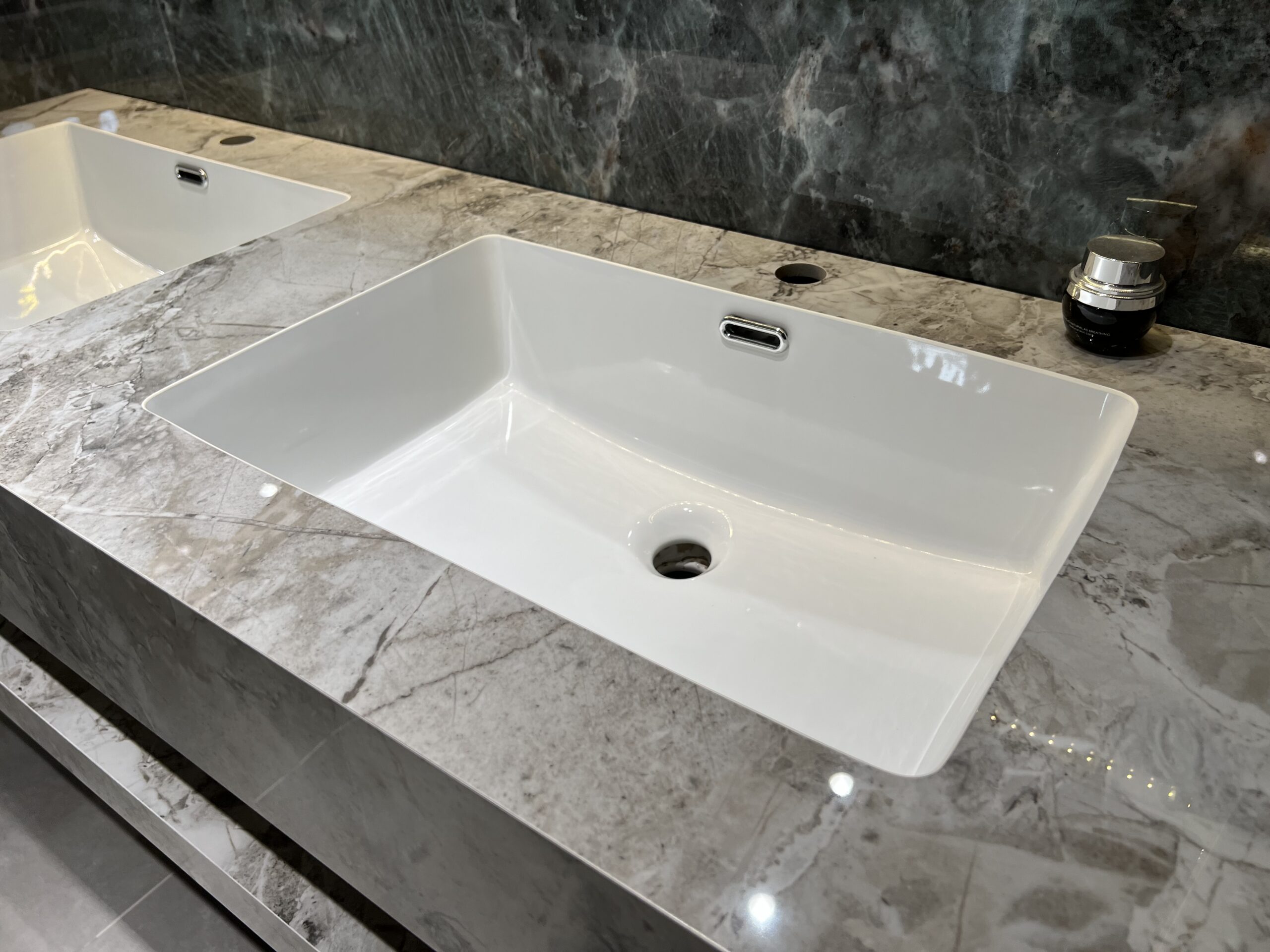

A CNC waterjet machine achieves high cutting accuracy on granite countertops and flooring patterns, producing smooth, consistent edges on complex shapes. HOYUN Machinery’s stone and granite CNC waterjet cutting machine is used internationally by countertop fabricators and flooring contractors who require the dimensional accuracy that abrasive waterjet technology provides on natural and engineered stone materials.

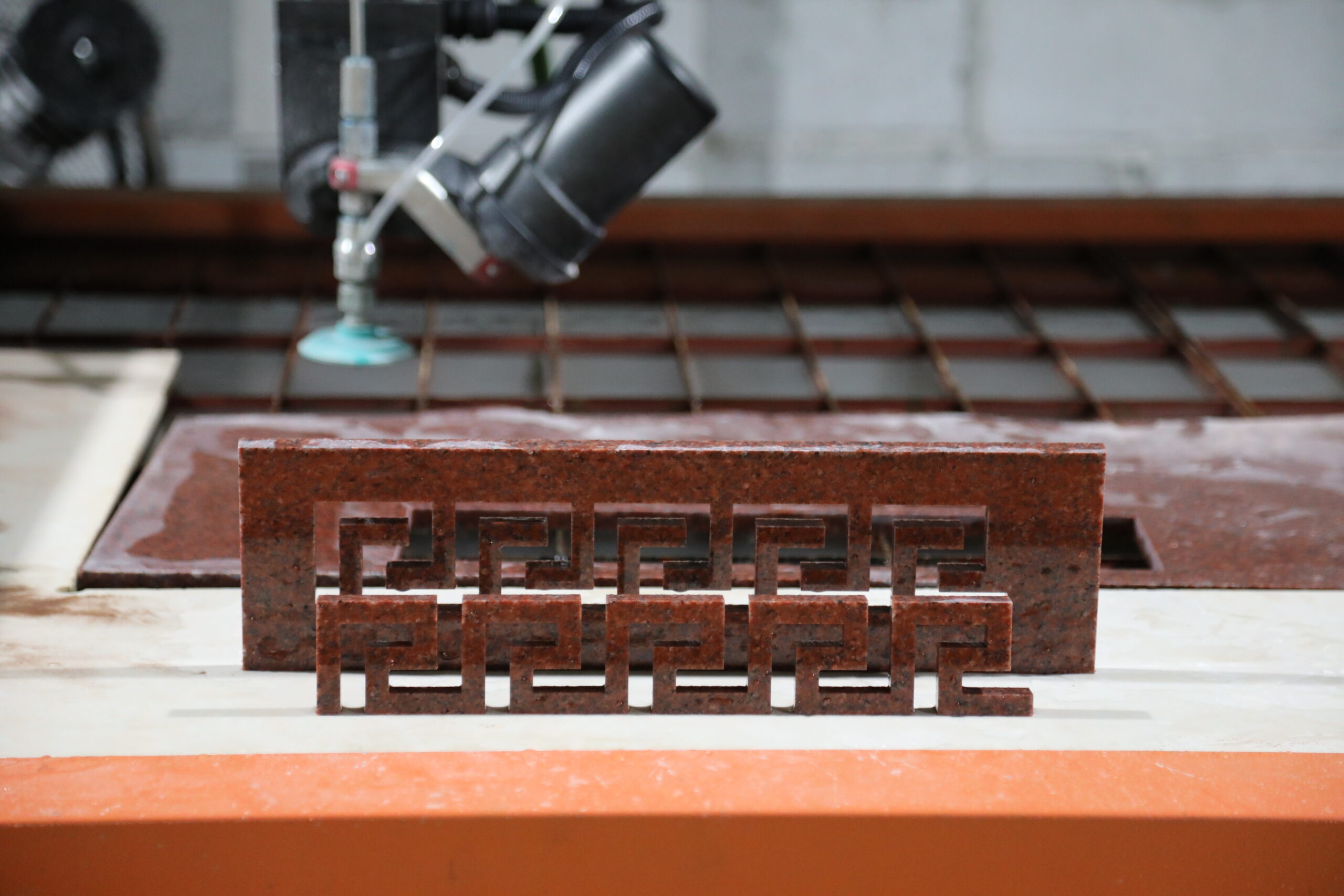

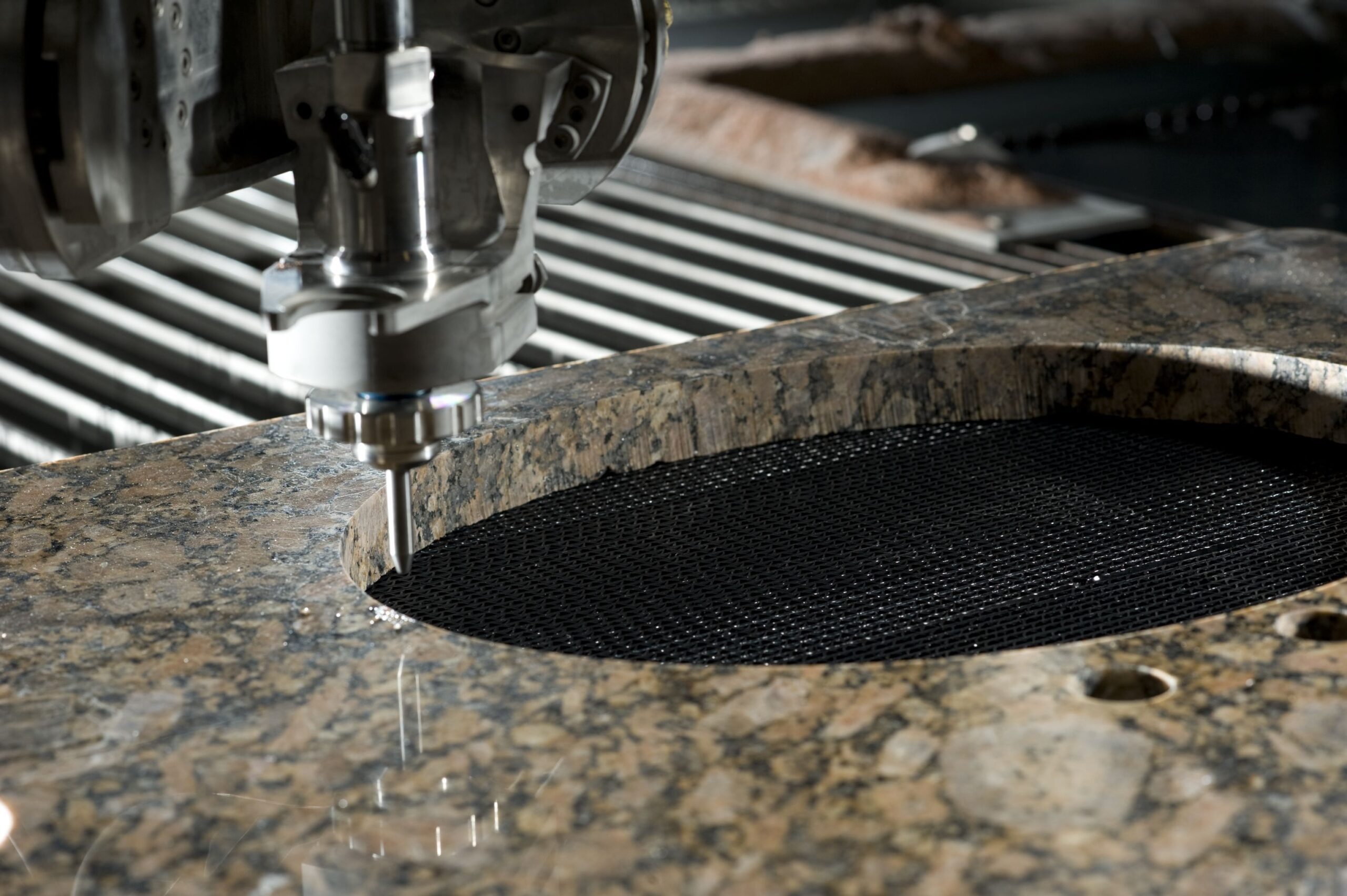

A CNC waterjet cuts complex curved shapes in granite with reduced risk of chipping or cracking compared to mechanical cutting methods because it uses abrasive water erosion rather than mechanical blade contact, reducing the mechanical impact stress associated with blade cutting. HOYUN Machinery’s granite CNC waterjet cutting machine is used by stone fabricators producing curved countertop edges, radius cuts, and intricate flooring borders in granite, marble, and travertine.
Export buyers typically source their stone and granite CNC waterjet machines directly from HOYUN Machinery in China, which keeps pricing factory-direct and includes after-sales support from HOYUN’s factory. HOYUN ships their granite waterjet machines with full installation documentation, remote commissioning guidance, and spare parts support from the factory serving buyers in Europe, the Middle East, Asia, and the Americas.

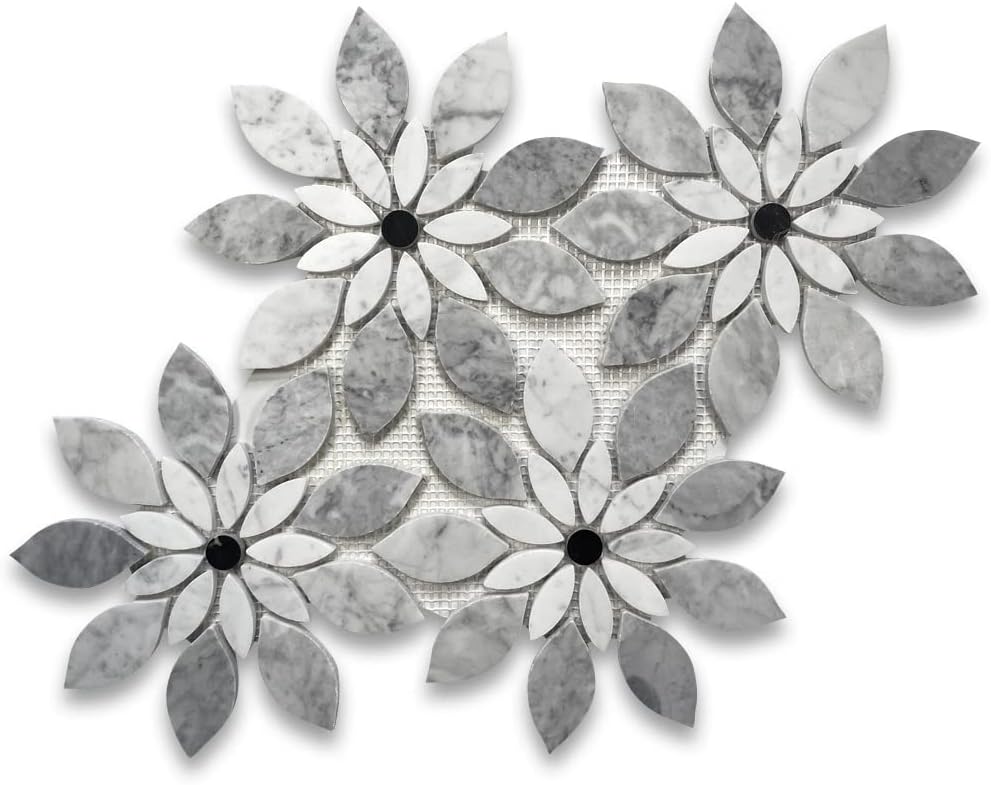

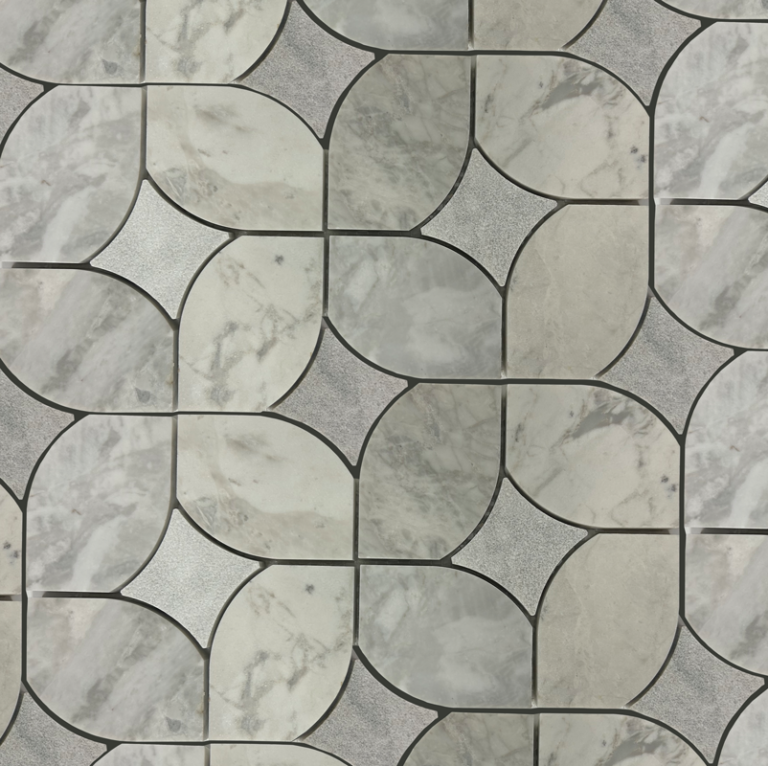

Granite flooring medallions for luxury hotel lobbies are produced using high-precision CNC waterjet cutting machines that cut multiple stone colors to interlocking curved shapes. HOYUN Machinery’s stone and granite CNC waterjet cutting machine is used internationally by medallion producers and decorative stone studios for intricate multi-stone flooring designs that only waterjet cutting can deliver at this level of precision.
